Debug mode is ON — this increases power consumption and reduces battery life.
Use Google Chrome or Microsoft Edge on a computer. Safari, Firefox and phones cannot access USB devices.
1Select COM Port
Connect your device to this computer using the included USB Config Cable, then click Scan Ports.
Make sure the USB driver is installed first.

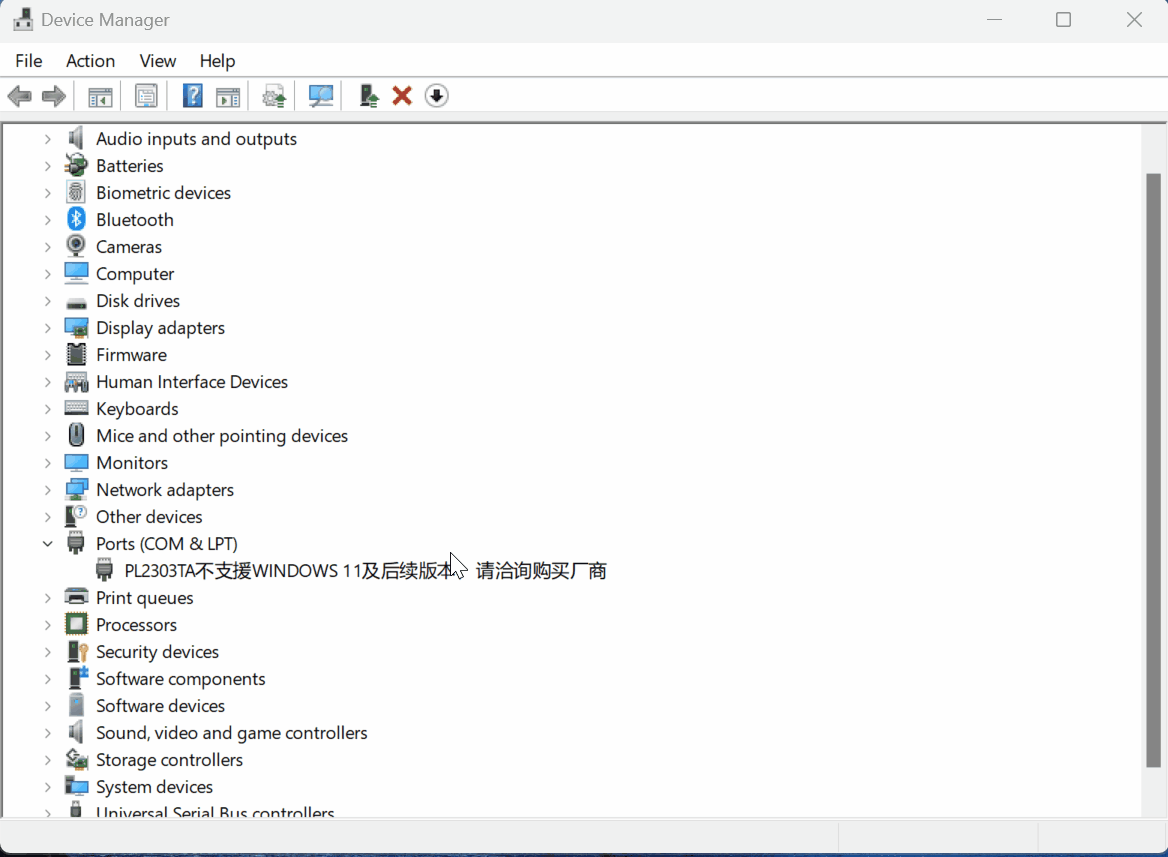

On Windows 11, if the port still doesn't appear:How to fix →
2Connect Device
Make sure your device is powered on (blue LED should be on) before connecting.
Not connected
Select a COM port above, then click Connect.
—
—
—
3Configure & Apply
Setup
Device Info
Advanced
Network
SIM, server and regional band settings
APN
Server
Port
APN must match your SIM card. Server is a domain or IP — no http://.
APN cannot be empty.
+ My SIM needs an APN username/password
APN Username
APN Password
Region
🌍
Global
Europe · Asia · Africa
🇺🇸
USA / Canada
LTE-M only
🇦🇺
Australia / NZ
LTE-M · Band 28
📶 LTE-M with 2G fallback
Working Mode
How often the device reports its location
First time? Use Mode 1 (Real-time). Other modes may sleep when not moving, which can look like a malfunction.
Mode 1 — Real-timeRecommended for testing
📡 Always reporting at a fixed interval. Best for testing.
Interval
sec
(10 – 600 sec)
Mode 0 — Mix ModeSlightly higher power than Mode 7
⚡ Reports fast when moving (seconds), slow when still.
Moving interval
sec
(10 – 600 sec)
Still interval
hr
(1 – 24 hr)
Mode 7 — Smart Low Power
⚡ Like Mix but lower power, minute-scale moving interval — best for most users.
Moving interval
min
(10 – 1440 min)
Still interval
hr
(1 – 24 hr)
Mode 3 — Ultra Low Power
🔋 Reports every few hours. Battery can last years — best for assets you check now and then.
Interval
hr
(1 – 24 hr)
Need a different mode? Use Advanced → Advanced Command to enter a MODE command directly.Mode guide →
Device Options
GPS & connection settings
AGPS
Use WiFi positioning when GPS is unavailable.
Last Known Position (LEP)
Report the last known position when GPS is unavailable.
Light Sensor (LTP)
Send an alert if the enclosure is opened.
TCP keep-alive (RWT)
sec
(60 – 600 sec)
GPS search time (DUR)
min
(1 – 10 min)
Debug Mode
Verbose logging for testing — increases power use
Enable debug output
Disable after testing to save battery.
Advanced Command
Send one or more raw commands, in order
⚙️ For advanced users. Commands run top-to-bottom after a wake-up (ETS). The tool adds REBOOT at the end to save — unless the last line is already MODE, REBOOT or QTS. Unknown commands are blocked.
Danger Zone
Irreversible — erases all settings
Restores the device to factory defaults. This cannot be undone.
Device Information
Current configuration read from the device
Connect your device and click View Settings to load its current configuration.
Configuration applied! Device is restarting. Please wait 2–5 minutes before checking your tracking platform.
Factory Reset
This will erase all settings and restore factory defaults. This cannot be undone.
1
Waking up device
—
2
Restoring factory defaults
—
Factory reset complete. The device is now at factory defaults and is still connected. Settings shown above no longer reflect the device — reconfigure and Apply, or click View Settings.
